Burlington Northern Freight Cars

Boxcars

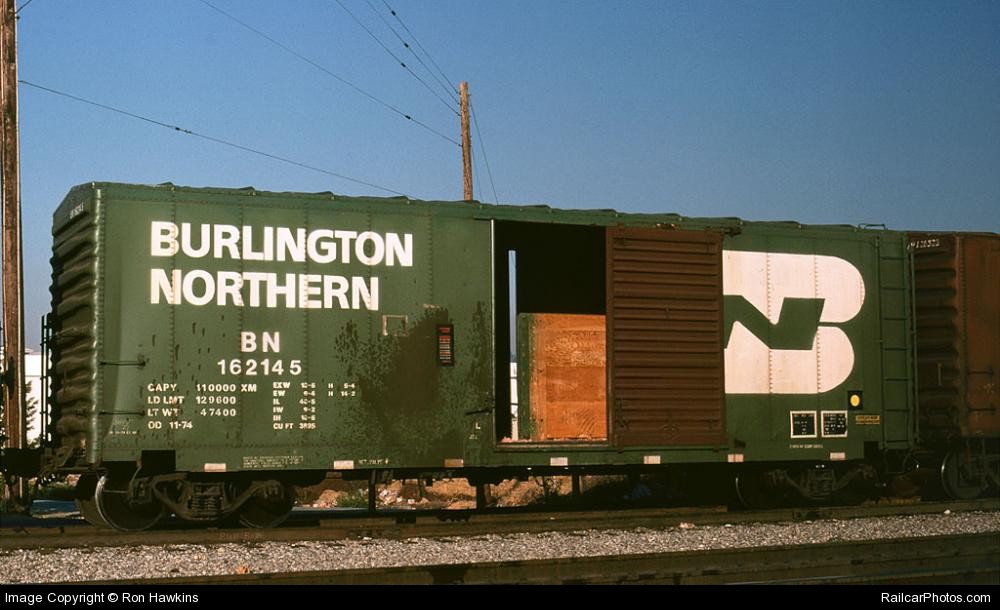

Burlington Northern 40ft boxcar BN 162145 stands at City of Industry, California, on 1 June 1978. Built by Great Northern’s St. Cloud shops in 1951, the car was one of a large group inherited by Burlington Northern following the 1970 merger. The weathered green paint, large BN logo and open sliding door provide a typical view of a veteran general-service boxcar still handling interchange traffic nearly three decades after construction. © Ron Hawkins
Burlington Northern boxcar BN 189451 stands at Aragon, Hidalgo, Mexico, on 2 March 1982. Originally built by the Chicago, Burlington & Quincy Railroad at its Havelock shops between 1942 and 1948, the car was rebuilt in 1970 and renumbered into Burlington Northern’s 189000-series. The large BN logo contrasts with the weathered green paintwork, illustrating how these rebuilt 40ft boxcars continued to see widespread interchange service well into the 1980s. © Matt Herson

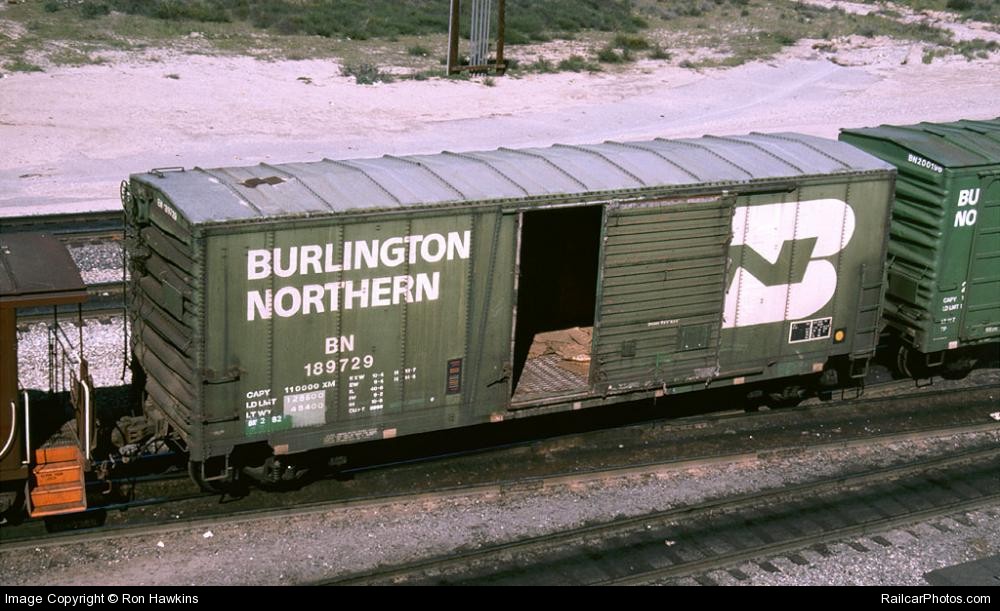

Burlington Northern boxcar BN 189729 is seen at West Colton, California, on 20 March 1982. Built by the Chicago, Burlington & Quincy Railroad at its Havelock shops during the 1940s and later rebuilt for continued service, the car carries Burlington Northern’s large merger-era logo and weathered green paint scheme. The open door reveals the empty interior of a boxcar that, despite its age, remained active in interchange freight service more than three decades after construction. © Ron Hawkins
Burlington Northern double-door boxcar BN 190011 stands at Spuyten Duyvil, New York, in January 1980. Originally built by Northern Pacific at its Brainerd shops in 1959–60, the car was rebuilt by Burlington Northern at St. Cloud during 1975–76, receiving double sliding doors to improve loading access. The rebuilt car retains Burlington Northern’s distinctive cascade green paint scheme and large corporate logo, representing the continuing use of modernised 40ft boxcars in general merchandise service during the late 1970s and early 1980s. © Matt Herson
Burlington Northern boxcar BN 198669 is seen at Marble Hill, New York, on 6 July 1979. Built by Great Northern’s St. Cloud shops in June 1956, the 3,977 cubic foot boxcar became part of Burlington Northern’s fleet following the 1970 merger. Still carrying its cascade green paint and large white BN logo, the car represents the thousands of 40ft boxcars that continued to handle general merchandise traffic long after larger freight car designs had become common. © Matt Herson
Burlington Northern boxcar BN 198897 stands at Fullerton, California, on 22 June 1977. Built by Great Northern’s St. Cloud shops in 1955, the 40ft boxcar became part of the Burlington Northern fleet following the 1970 merger. The car carries the railroad’s cascade green paint scheme and bold white corporate markings, while its age and weathering reflect the continued use of thousands of inherited boxcars in North American interchange service during the 1970s. © Ron Hawkins
Number SeriesCar TypeNotes
BN 161900-16219940ft BoxcarFrom GN series 20500-21449 built by Great Northern’s St. Cloud Car Shops
BN 189000-18979940ft BoxcarFrom multiple CBQ series 29000-29499, 34000-34171, 34200-34854, 35000-37749 built by CBQ (Havelock) rebuilt in 1970.
BN 190000-19009940ft Boxcar
BN 198500-198749
BN 198750-198999
BN 200000-20029940ft Box Carex NP 8000-9249
BN 213600-21379950ft Box Car; PS-1ex SL-SF 40000-40399
BN 214200-21469950ft Box Carex SL-SF 42000-40499
BN 219000-21908450ft Box Carex SL-SF 11900-11984
BN 219300-219378These 50′-6″, 75 ton, box cars were built by Evans-SIECO (Orders 1427 & 1430) in 5-8/1978 & 9-10/1978. They featured 5277 ft3 capacity.
Models: BN 219340 Roundhouse 8309 ★,
BN 219346 Athearn 10943 ★,
BN 219347 Athearn 1218 ★,
BN 219354 Athearn 1219 ★,
BN 219361 Athearn 1220 ★,
BN 219364 Roundhouse 8309 ★,
BN 219366 Athearn 1222 ★,
BN 219367 Athearn 10944 ★,
BN 219367 Roundhouse 8309 ★
BN 223000-2231965344 cu ft Box Carex SBD 162043-162242; nee SNCT 1100-1299
BN 223493 Athearn 11283 ★,
BN 223665 Athearn 11284 ★,
BN 316212 Athearn 11143 ★,
BN 316212 Athearn 11224 ★,
BN 316227 Athearn 11144 ★,
BN 316227 Athearn 11225 ★,
BN 322455 Athearn 11401 ★,
BN 322486 Athearn 11402 ★
BN 223900-22399950ft 7in Box Carex SP 244150-244649; B-70-73
BN 236700-23699950ft Box Carex GN 138100-138399
BN 240300-24059950ft Box Carex NP 3764-3999
BN 244300-24474950ft 6in Box CarAC&F lot 11-06180; 1971
BN 244850-24499950ft 6in Box Carrebuilt/renumbered from BN 321000-321499
BN 248570-24876950ft 6in Box Carex NP 4000-4499
BN 248770-24886950ft 6in Box Carex NP 6000-6499
BN 249000-24924150ft 6in Box Carex RBOX 12649-12893; XAF-11
BN 249242-24946050ft 6in Box Carex RBOX 15000-16499; XPF-11
BN 249461-24990050ft 6in Box Carex RBOX 16700-17499; XWF-10
BN 249901-25021850ft 6in Box Carex RBOX 18538-19499; XFF-10
BN 250219-25048150ft 6in Box Carex RBOX 19733-19999; XCF-10
BN 315000-31529550ft Box Carex NP 5000-5295
BN 315296-31529950ft Box Carex NP 5296-5299
BN 315300-31569950ft Box Carex NP 5300-5699
BN 319100-31949950ft 8in Box Carex GN 319100-319499
BN 320000-32020550ft 8in Box Carex BN 319100-319499
BN 322100-32219952ft 6in Box CarPC&F; 1977
BN 322200-32239952ft 6in Box CarPC&F; 7-8/1978
BN 375619-37579950ft Box Carex GN 138100-138399
BN 376000-37619950ft 7in Box Car; hi-cubeAC&F; 1972
BN 748270-74829950ft Box Carex NP 97570-97599

Covered Hoppers

Number SeriesCar TypeNotes
BN 410200-410227Airslide HopperGATC; ex CB&Q 87650-87677
BN 410250-410299Airslide HopperGATC; ex CB&Q 87750-87799
BN 410515-410539Airslide HopperGATC; 12/1978-1/1979
BN 438300-4384992-Bay Covered Hopperex SLSF 78200-78399
BN 439360-4394313-Bay Covered Hopperex SLSF 81350-81424; PS lot 8980; 1/1965
BN 441100-4411093-Bay Covered Hopperex CB&Q 85400-85409
BN 446000-4464993-Bay Covered HopperAC&F lot 11-01332; 5-6/1975
BN 446500-4465093-Bay Covered Hopperex IMCX 10100-10279
BN 448925-4494243-Bay Covered HopperPS lot 1036; 12/1979-1/1980
BN 449950-4499993-Bay Covered HopperAC&F; 3/1977
BN 450000-4500393-Bay Covered Hopperex GN 71700-71739
BN 450040-4500693-Bay Covered Hopperex GN 71740-71769
BN 450100-4502393-Bay Covered Hopperex CB&Q 85500-85639
BN 450240-4502893-Bay Covered Hopperex CB&Q 85640-85689
BN 455000-4554493-Bay Covered HopperAC&F; 4, 7/1975
BN 456700-4568994750 cu ft Covered Hopperex GN 171500-171699
BN 459100-4593493-Bay Covered HopperAC&F; 10-11/1974
BN 459350-4595493-Bay Covered Hopperex FW&D 459350-459549
BN 460200-4611993-Bay Covered HopperFMC lot 17975; 2-5/1980
BN 463618-4636343-Bay Covered Hopperex WCTX 8001-8020
BN 463635-4636543-Bay Covered Hopperex WCTX 8101-8120
BN 467000-4679993-Bay Covered HopperTrinity; 1992
BN 471500-4724993-Bay Covered HopperTrinity; 3-4/1995
BN 475040-4750743-Bay Covered Hopperex LGIX 275-1012
BN 480010-4800243-Bay Covered Hopperex NP 75650-75664
BN 481400-481457Airslide Hopperex SL-SF 81900-81957
BN 495000-495049Pressure-Slide Hopperex CB&Q 84950-84999

Hoppers

Number SeriesCar TypeNotes
BN 524400-5245994-Bay Open Hopperex CB&Q 160600-160799

Gondolas

Number SeriesCar TypeNotes
BN 560350-56084950ft GondolaThrall; 1975

Flat Cars

Number SeriesCar TypeNotes
BN 616050-616109Bulkhead Flat Carex GN 160000-160059
BN 621050-621099Bulkhead Flat CarGSI; 3-4/1970
BN 621250-621449Bulkhead Flat CarThrall; 1975
BN 621450-621649Bulkhead Flat CarThrall; 1976
BN 621650-621849Bulkhead Flat CarGreenville Steel Car; 1977
BN 629437-629498Bulkhead Flat CarGreenville Steel Car; 1972

More Information

  • Casdorph, David G. Burlington Northern Color Guide to Freight & Passenger Equipment. Morning Sun Books, 2001.
